Silt Pumps and Dredging Equipment



Pumps



The Doro Pump

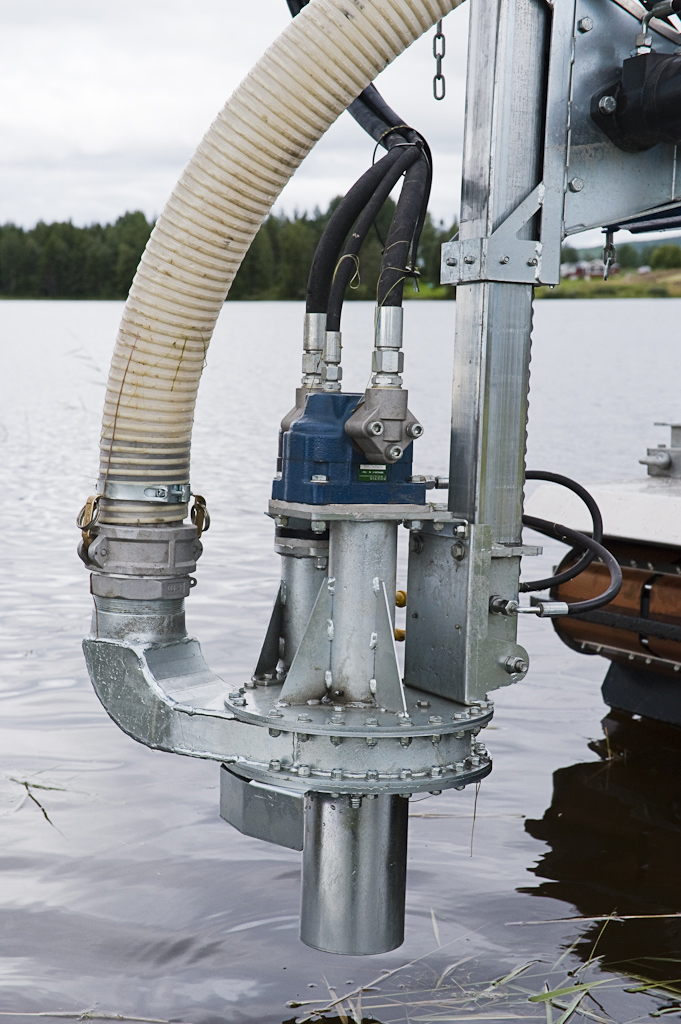

Doro Pump with Nozzle
The Doro pump is a hydraulically operated dredge pump with a screw feeder that breaks off and feeds sediment into the pump intake. The Doro pump is easy to attach and changing to another tool takes only a few minutes. The pump is delivered ready for assembly on the lifting arm.

The pump can be used on its own, with the mechanical extension provided or with the telescopic extention for work in deeper water

The Doro Pump comes included with:
- 1 hydraulically operated feeding screw (Auger) (pictured below)
- 1 suction nozzle (pictured right)
- 6m spiral tubing incl. couplings
- 25m flat tubing, 102mm wide, with camlock quick coupling and buoyancy tube
- 1 Standard DM attachment 0.9m
- 1 extension bracket 0.7m
- 1 bracket set for spiral tubing
- 10 Floaters

For Use With
T40 | T30 | 5045 | 5000

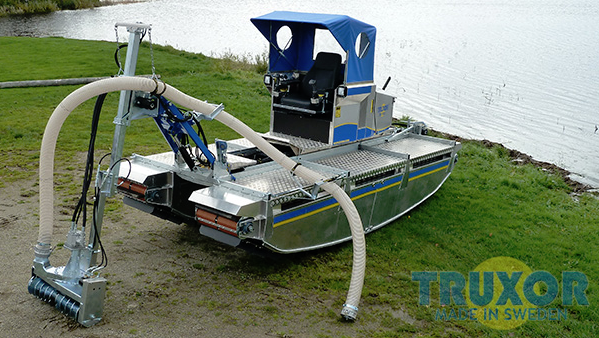

Doro Pump with Auger

Technical Data
Part No: 78-2502
With Feeding Screw:
Weight: 94kg
Dredging depth: 1.6m (with extension)
Working width: 0.8m
Max. capacity: 130 m3/hour
Max capacity with lifting height: 1 metre 120 m3hour, 2 metre 110 m3/hour, 3 metre 100 m3/hour
The lifting height, hose length, type of sediment etc. all affect the maximum capacity. The lifting height, hose length, type of sediment etc. all affect the maximum capacity.

The Doro Pump V3

Doro Pump V3
The Doro Pump V3 when mounted on a Doro Digger offers extensive control of the dredging accessories. The system has a rotating head and knives mounted on the intake, ensuring an even feed of material into the Doro pump. The wings of the intake system feeds the sediment and minimises the dirtying of the water with the sediment.

The Doro Pump V3 comes included with:
- Hydraulically operated drill feed
- 8m spiral tubing including couplings
- 25m flat tubing, 102mm wide, with camlock quick coupling and buoyancy tube
- 5m flat tubing with quick coupling and end nozzle
- Outrigger pontoon extensions
- 1 bracket set for spiral tubing
- 10 Floaters

For Use With
T40 | T30 | 5045 | 5000

Doro Pump V3

Technical Data
Part No: 78-2503
Doro pump V3 weight: 88 kg
Standard set weight: 86 kg
Maximum dredging depth with Doro Pump V3: 3.5 m
Max. permitted working width with Doro pump (diameter): 4 m (floating machine)
Max. permitted working width at a water depth of up to 40 cm: (diameter) 7 metre
Max depth, outrigger pontoons, stabilisation against the bottom (dredging): 2m
Working width infeed: 400 mm
Max. capacity: 130 m3/hour
Max capacity with lifting height: 1 metre 120 m3/hour, 2 metre 110 m3/hour, 3 metre 100 m3/hour
The lifting height, hose length, type of sediment etc. all affect the maximum capacity. The lifting height, hose length, type of sediment etc. all affect the maximum capacity.
