Attachments


Vegetation Cutters



Deep Cutters

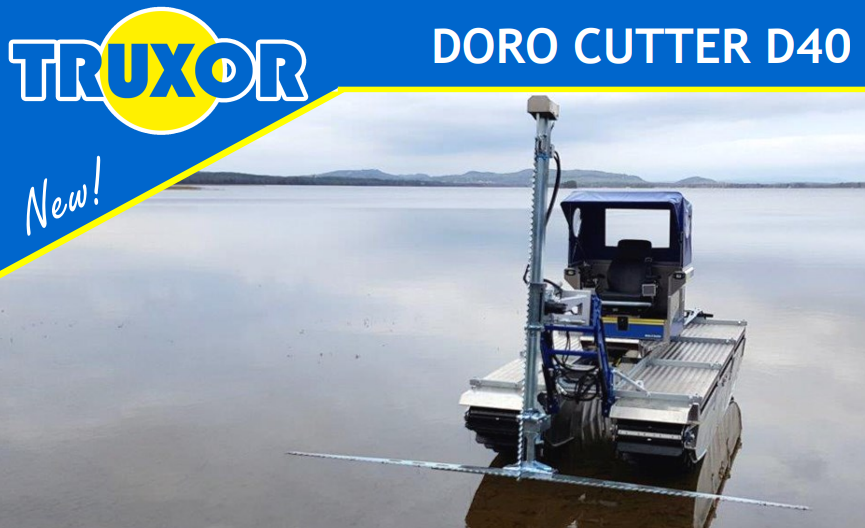

Doro cutter D40

Doro Cutter D40
The D40 is a deep cutting unit with a telscopic function. A larger cutting depth of 2.1 meters allows vegetation to be cut closer to the bottom, lengthening the time between cutting and regrowth

The D40 has a hydraulic drift and is easily mounted in the tool bracket on the Truxor. The cutting knives are available in working widths from 2.2m to 4m, with 4m delivered as standard

For Use With
T40 | T30 | 5045 | 5000

Technical Data
Part No: 84-03200
Cutting depth 0.2m - 2.1m
Work width 2.2m - 4m

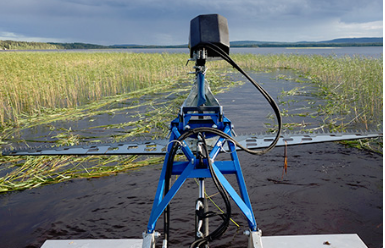

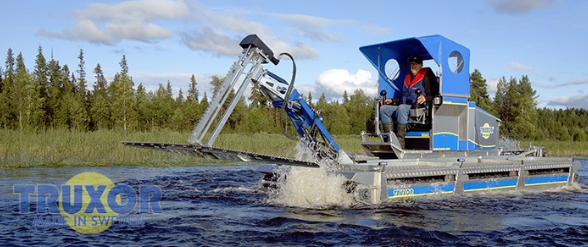

Doro cutter D20/D30

Doro Cutter D40

Doro Cutter D40
This cutter is ideal for cutting submerged aquatic vegetation. The cutter is hydraulically driven and attached to the machines lift arm. Cutting depth is between 1 (D20) and 1.4 (D30) metres and the interchangeable blades give a cutting width from 2.2 to 4 metres. A stone-release system protects the knives should they come into contact with underwater objects. This cutter is not designed to operate on land.

For Use With
T40 | T30 | T20 | 5045 | 5000

Technical Data

D20

Part No: 95-20300
Cutting Depth: 1m
Work width: 2.2m - 4m
Weight: 61 kg

D30

Part No: 95-20400
Cutting Depth: 1.4m
Work width: 2.2m - 4m
Weight: 67 kg

Knife Sets

Interchangeable cutter blades for use with the D40, D30 and D20 to increase (or decrease) the working width. Simple to fit and replace

Technical Data

2.2 Meter

Part No: 95-70022
Work width: 2.2m

3 Meter

Part No: 95-70030
Work width: 3m

4 Meter

Part No: 95-70040
Work width: 4m


Shallow Cutters

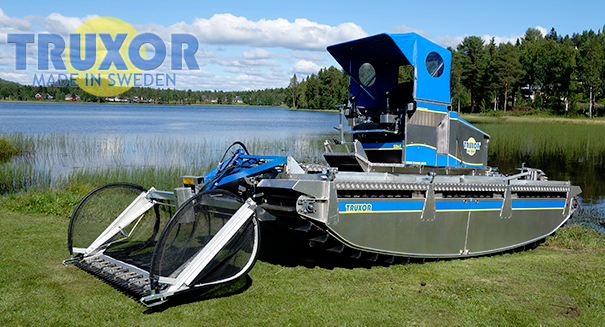

Doro cutter B50

Doro Cutter B50
The Doro Cutter B50 cuts and collects plants at the same time. It is recommended for smaller waterways such as golf ponds where space is scarce and the water flow can make collection difficult. When only the cutting function is to be used the collection net on the cutting bucket can be removed. The machine is equipped with double-action Busati knives.

For Use With
T40 | T30 | T20 | 5045 | 5000

Technical Data
Part No: 90-27800
Cutting Depth: 0.8m
Working width: 2.1m
Width: 2.25m
Weight: 110kg

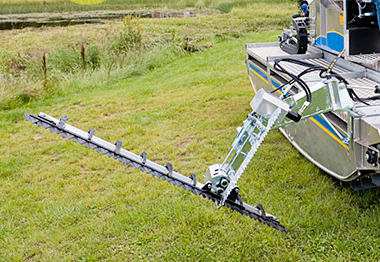

Doro cutter B40

Doro Cutter B40
The Doro Cutter B40 is mounted on the side of Truxor making it possible to cut along channels and canals. The angle of the cutting unit is adjustable. The knives are double- action Busati. The Doro Cutter B40 is equipped with a stone release system that protects the knives when they encounter solid objects. The cutter has a hydraulic side arm with built-in adjustable extension for greater range.

For Use With
T40 | T30 | T20 | 5045 | 5000

Technical Data
Part No: Q 2 2020
Cutting Depth: 0.5m
Working width: 1.7m
Weight: 118kg

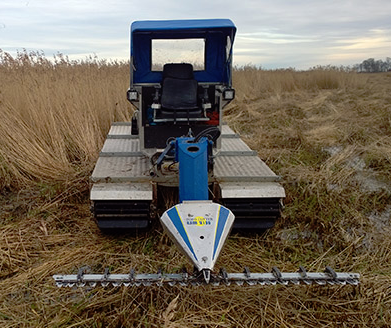

Doro cutter B30

Doro Cutter B30
The Doro Cutter B30 is a cutting aggregate for wetlands and subsoil water. The Double-action Busati knives have a larger opening. A direct-drive hydraulic motor with double-action knives, which increases the capacity so that even coarse plants and individual bushes of up to 15-20 mm can be cut. A stone release system provides overload protection when the knives stop against solid objects.

For Use With
T40 | T30 | T20 | 5045 | 5000

Technical Data
Part No: 82-18300
Cutting Depth: 0.3m
Working width: 2.15m
Weight: 114kg

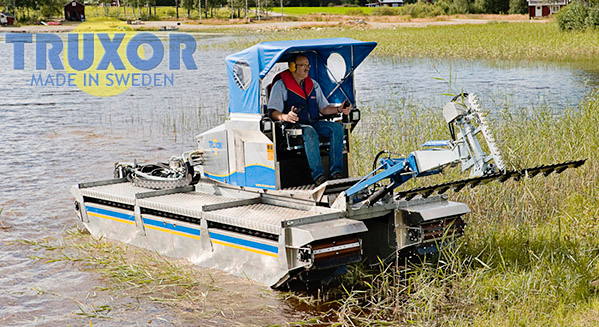

Doro cutter B20

Doro Cutter B20
The Doro Cutter B20 is a front-mounted cutter with double-action Busati knives. In comparison to the single-action knives, the double-action knives are more efficient and have a higher cutting capacity. The ESM 2100 is recommended when the water depth is less than 50 cm. A stone release system protects the knives from stopping when coming into contact with solid objects.

For Use With
T40 | T30 | T20 | 5045 | 5000

Technical Data
Part No: 90-27900
Cutting Depth: 0.5m
Working width: 2.1m
Weight: 72kg

Other Cutters



Doro cutter D60

Doro Cutter B60

Doro Cutter 600
The Doro Cutter D60 is mounted on the Doro digger. The cutter effectively cuts vegetation and bushes on shorelines and in wetlands. The ESM 1900 can cut most types of plants and bushes up to 25 mm in diameter. The knife beam has knives on both sides and the plants are cut from both directions by the swinging motion of the digging arm. The large working width reduces driving distances in wetlands and minimizes soil surface damage. The ESM 1900 is not recommended for use under the water surface

For Use With
T40 | T30 | 5045 | 5000

Technical Data
Part No: 80-10000
Max Reach when mounted: 11.5m
Work width of cutter: 1.9m
Weight: 88kg
